Fiber Blowing Machines

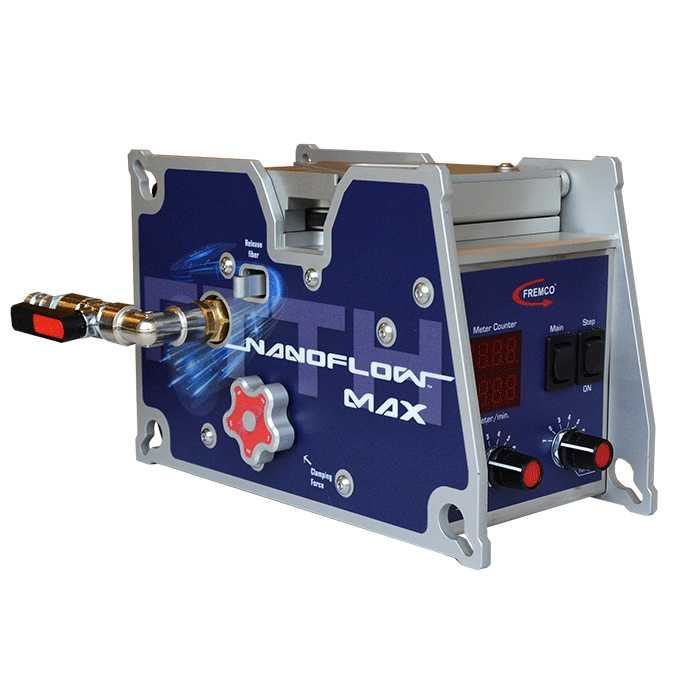

NANOFLOW MAX

Small but powerful fiber blowing machine, which can blow both blown fibre (EPFU) and micro/nano cables. Tested in accordance to IEC standards.

  • Fiber/Cable OD: 0.8-4.5 mm
  • Duct size OD: 3.0-12.7 mm
  • Preparation time: 3 min
  • Blowing distance: up to 1200m

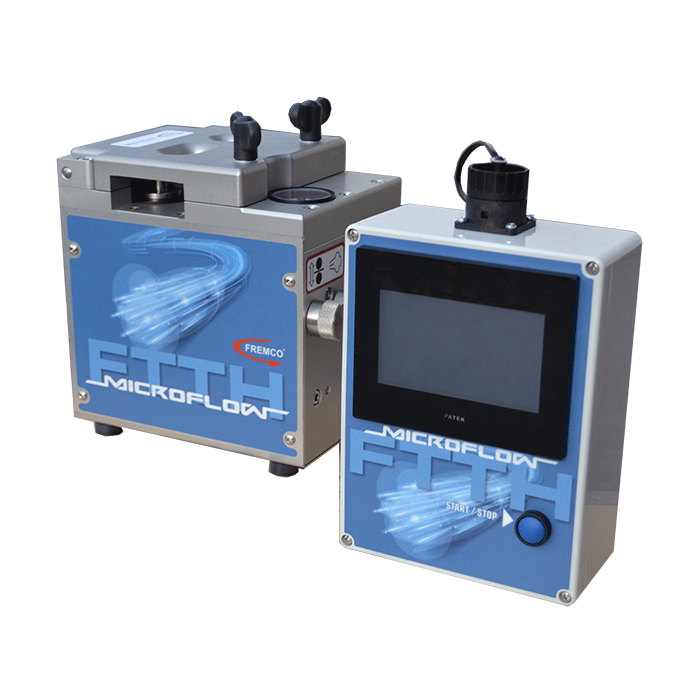

MICROFLOW TOUCH

Fully automatic fiber blowing machine that secures fast and reliable optical fiber blowing. Designed for air blown fiber and small fiber optic cables.

  • Fiber/Cable OD: 0.8-6.5 mm
  • Duct size OD: 4-16 mm
  • Preparation time: 5 min
  • Blowing distance: up to 2500 m

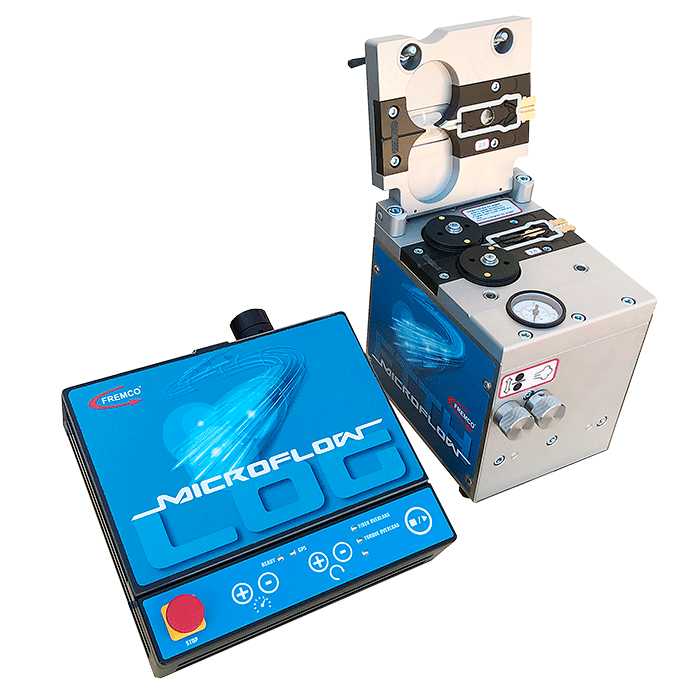

MICROFLOW LOG

Compatible with OptiCloud, the MicroFlow LOG is making work easier for network owners, contractors and installers.

  • Fiber/Cable OD: 0.8-6.5 mm
  • Duct size OD: 4-16 mm
  • Preparation time: 5 min
  • Blowing distance: up to 2500 m

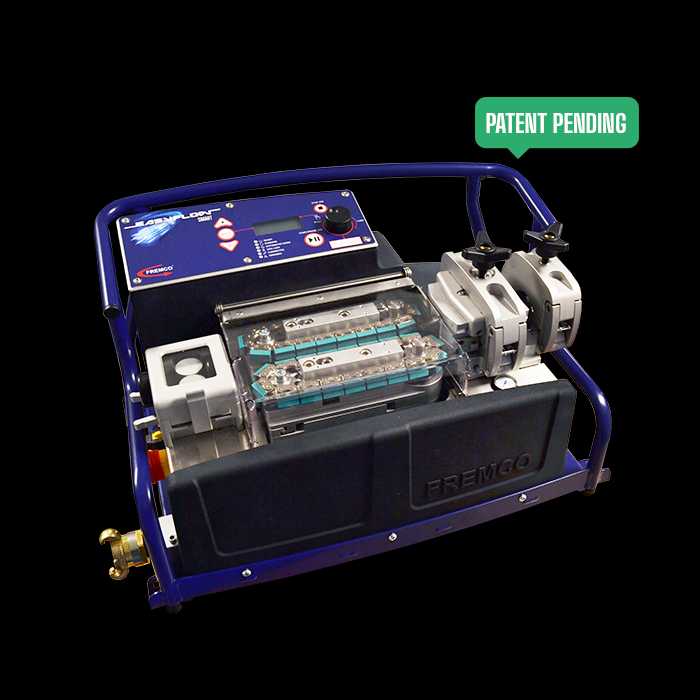

EASYFLOW SMART

Fully automatic fiber blowing machine that secures reliable optical fiber blowing. Designed for cable from 4-16 mm.

  • Fiber/Cable OD: 4-16 mm
  • Duct size OD: 8-40 mm
  • Preparation time: 5 min
  • Blowing distance: up to 3,500 m

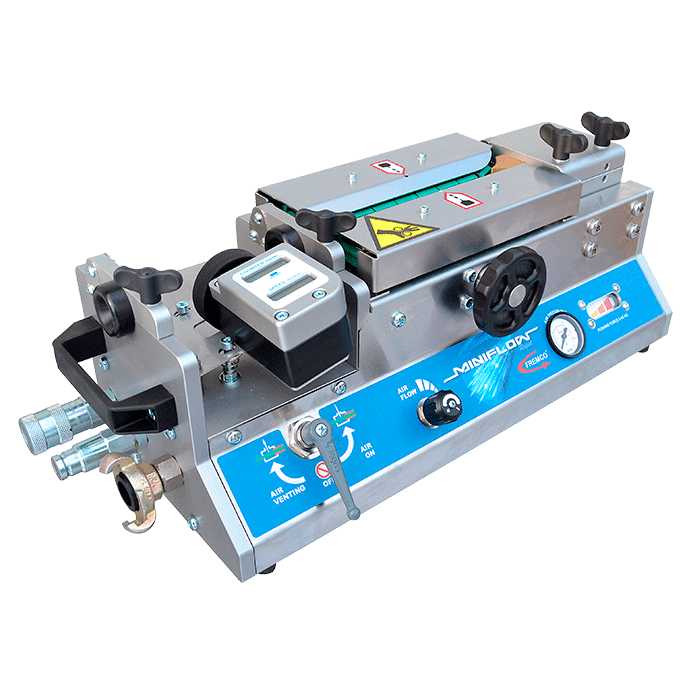

MINIFLOW RAPID

Hydraulic cable blowing machine with a built-in electronic counter and cable damage safety monitoring system.

  • Fiber/Cable OD: 3-12 mm
  • Duct size OD: 7-20 mm
  • Preparation time: 4 min
  • Blowing distance: up to 3500 m

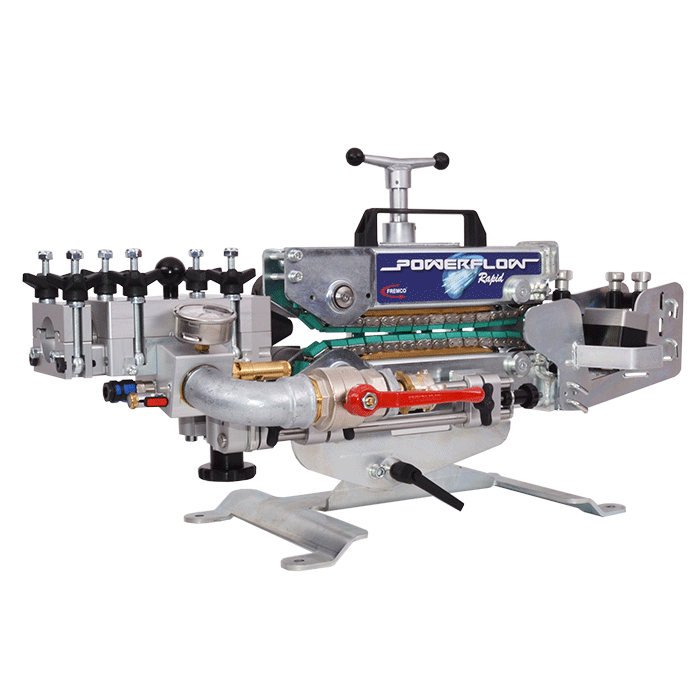

POWERFLOW RAPID

The PowerFlow RAPID is easy to operate and designed for rough conditions. This hydraulic machine can blow a large variety of larger cables, fibers and ducts.

  • Fiber/Cable OD: 5.5-25 mm
  • Duct size OD: 10-63 mm
  • Preparation time: 8-10 min
  • Blowing distance: up to 5,000 m
  • Floating distance (with water): up to 10,000 m

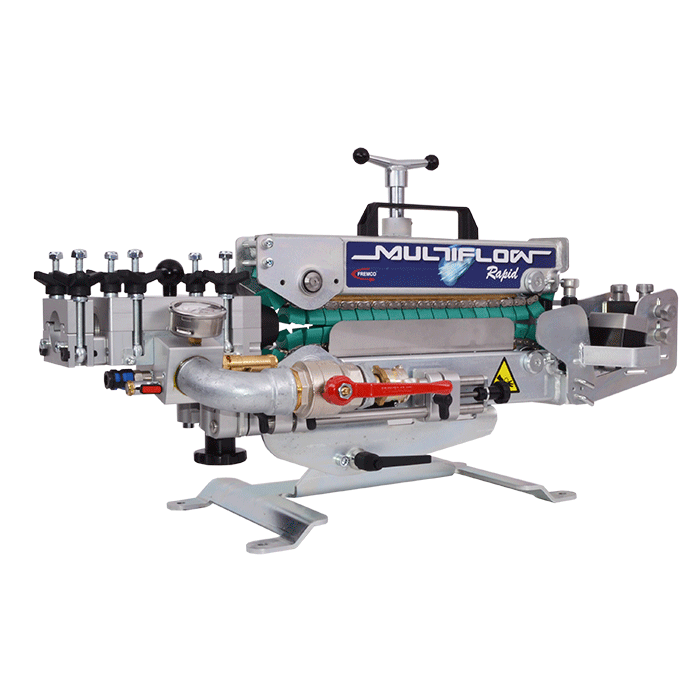

MULTIFLOW RAPID

MultiFlow RAPID is designed for relining of multiple micro ducts, but it can also be operated for single cables.

  • Fiber/Cable OD: 5.5-32 mm
  • Duct size OD: 10-63 mm
  • Preparation time: 8-10 min
  • Blowing distance: up to 5,000 m
  • Floating distance (with water): up to 10,000 m

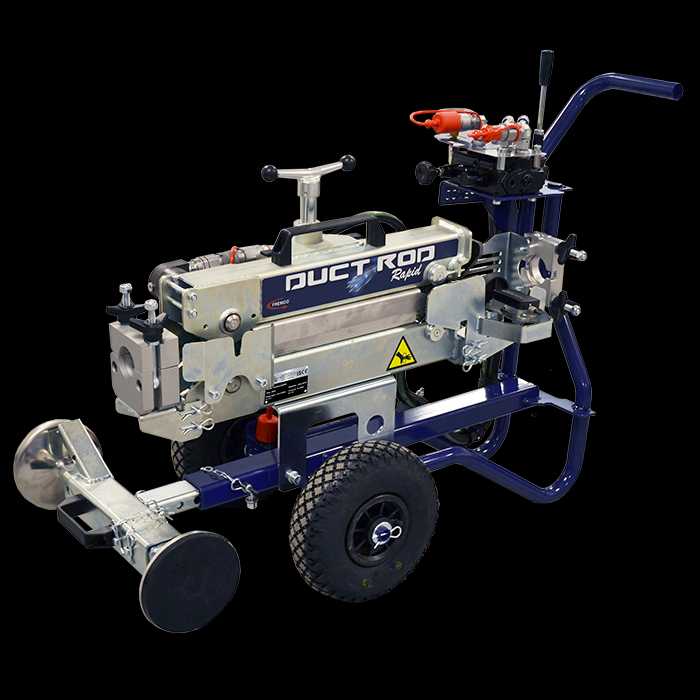

DUCTROD RAPID

Designed to push a duct rod into an underground duct. It is equipped with a flexible clamping unit, allowing you to attach the machine to the sidewall of the manhole securing more stable installation.

  • Rod OD: 9-25 mm
  • Duct size OD: 10-40 mm
  • Preparation time: 2-4 min
  • Pushing Distance: up to 500 m
